Native security elements
CLI/MLI, UV/IR and tactile authentication engraved into the document.
HARDWARE
Secure ID personalisation. Anywhere.
Central plants, regional offices, consulates and mobile field teams — issue trusted credentials anywhere, from one fleet-managed ecosystem, with the same security and auditability.
One unit. The full secure issuance stack.

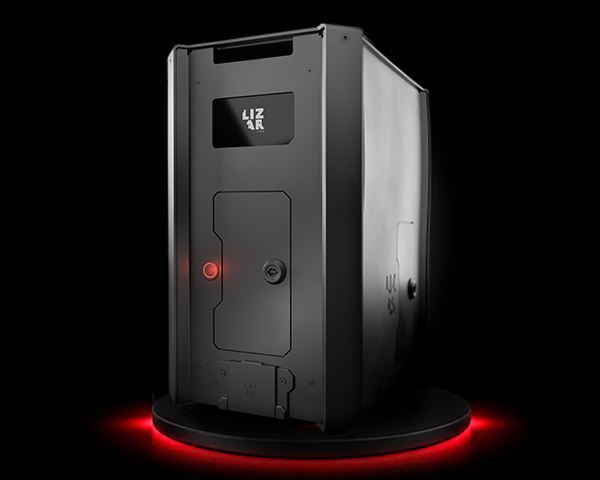

DRACO combines 20 W MOPA fibre laser engraving with contact and contactless chip personalisation in a single, transportable 30 kg desktop unit. It is remotely managed, AI-supervised and API-integrated — the active core of the LIZAR ecosystem rather than a standalone printer.
Cards are built with a polycarbonate outer surface over a PVC inner core — meeting ICAO 9303 best practice for high-security documents while keeping total cost manageable for sovereign and commercial programmes alike.
AT A GLANCE
Compact & transportable
Desktop form factor, 30 kg — deploy anywhere.
Laser + chip in one
Engraving and electronic personalisation together.
Remotely managed
Native fleet management via IGUAN MDM.
AI-supervised
GUEKO.ai inspects every credential.
SPECS
Engineered for reliability and efficiency.
DRACO is designed, produced and supported by LIZAR Systems, Lda., which operates management systems certified to ISO/IEC 27001 and ISO 9001. Its processes are aligned with ISO 14298 and ICAO 9303 practice.
- Throughput
- 40–100 cards / hour
- Time per card
- < 30 seconds (just-in-time)
- Laser
- 20 W custom MOPA fibre, 1,200 dpi
- Substrates
- PC (MAKROFOL®, LEXAN), PETG, HYBRID, metal, wood
- Card size
- ID-1 (ISO/IEC 7810)
- Feeder
- 200 cards in / 200 cards out
- Connectivity
- 4G, Wi-Fi, Ethernet
- API
- REST, authenticated (JWT)
- Power
- 100–240 V AC, 50/60 Hz, max 200 W
- Dimensions
- 304.9 × 472.2 × 483.5 mm
- Weight
- 30 kg, desktop mounting
- Safety
- Class 1 laser, fully enclosed, integrated filtration
SECURITY FEATURES
Trusted document features, built in.
Licensed features
OVI (SICPA), OVD/OVM and SURYS elements available via partners.
Composite construction
Polycarbonate surface over PVC core — durability with cost control.
IN PRODUCTION
Proven where it matters.
Fintech & crypto-security

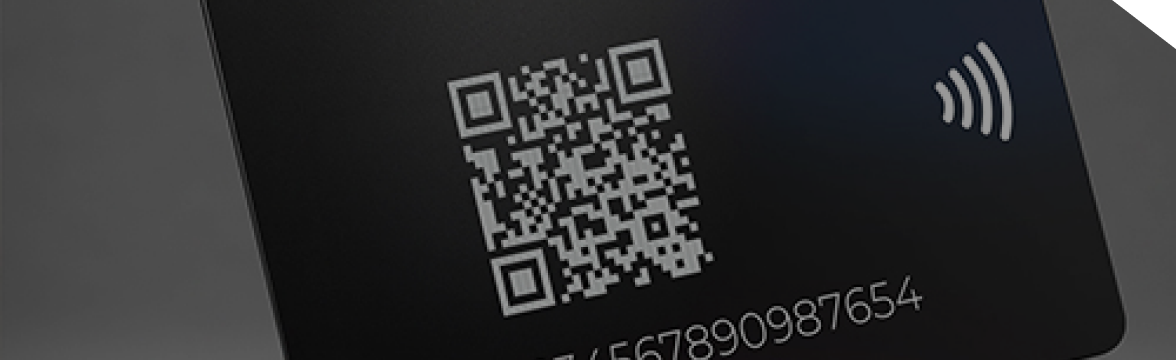

A fintech and crypto-security client runs 6 DRACO units with an integrated API for recovery-key cards: more than 100,000 cards personalised in two months.
Sovereign programmes

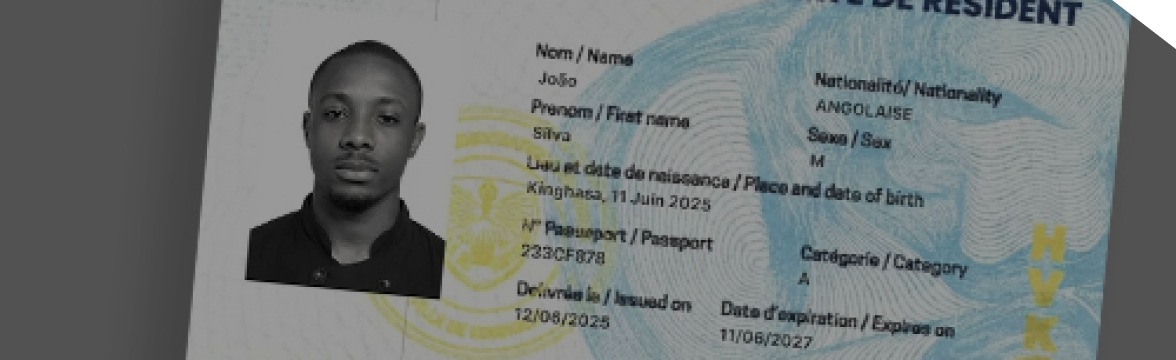

National ID issuance programmes are live in West and Central Africa. Further deployments run through channel partners. References are shared under NDA during procurement.
Secure credentials · Controlled issuance · Trusted infrastructure
